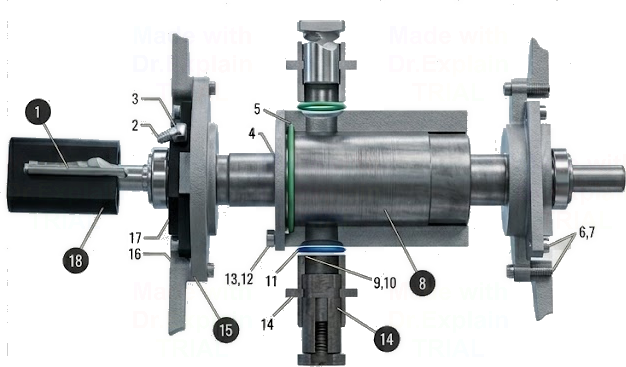

61-1-1.1 Mandrel Shaft Assembly
715-0195
1359
1158
|
No.
|
Part No.
|
Cant.
|
Descripción
|
|
1
|
705-6369
|
1
|
Nipple
|
|
2
|
555-2607
|
2
|
Connector
|
|
3
|
555-2528
|
2
|
Elbow
|
|
4
|
705-5246
|
1
|
Cap Mandrel Shaft
|
|
5
|
705-5281
|
1
|
O-Ring
|
|
6
|
952-2344
|
16
|
Capscrew
|
|
7
|
957-0039
|
16
|
Lockwasher
|
|
8
|
705-5242
|
1
|
Mandrel Shaft
|
|
9
|
952-1505
|
64
|
Capscrew
|
|
10
|
957-0027
|
64
|
Lockwasher
|
|
11
|
554-0101
|
32
|
O-Ring
|
|
12
|
952-2497
|
8
|
Capscrew
|
|
13
|
957-0039
|
8
|
Lockwasher
|
|
14
|
715-0366
|
32
|
Mandrel (Ver listado separado Sección 62)
|
|
15
|
705-5245
|
2
|
Plate
|
|
16
|
956-0186
|
4
|
Dowel Pin
|
|
17
|
705-5244
|
2
|
Bearing
|
|
18
|
705-9459
|
1
|
Rotary Joint
|
