715-0392
1161
|
No.
|
Part No.
|
Qty.
|
Description
|
|
1
|
958-0154
|
1
|
Key - 3/8 Sq. x 2
|
|
2
|
552-2388
|
1
|
Sprocket - #60-24T
|
|
3
|
552-2389
|
1
|
Roller Chain - #60x70P
|
|
4
|
715-0391
|
1
|
Chain Tightener (See Separate Listing Section 63)
|
|
5
|
952-1704
|
2
|
Capscrew - 3/8-16x1-3/8
|
|
6
|
957-0030
|
AR
|
Lockwasher - 3/8
|
|
7
|
951-0008
|
4
|
Nut - 3/8-16
|
|
8
|
559-1311
|
1
|
Bearing
|
|
9
|
715-0384
|
1
|
Coupler (See Separate Listing Section 63)
|
|
10
|
715-0382
|
1
|
Angle
|
|
11
|
952-1688
|
AR
|
Capscrew - 3/8-16x1-1/8
|
|
12
|
705-6246
|
2
|
Limit Switch Bracket
|
|
13
|
705-6247
|
2
|
Nut Plate
|
|
14
|
952-1008
|
4
|
Capscrew - 1/4-20x1/2
|
|
15
|
957-0022
|
4
|
Lockwasher - 1/4
|
|
16
|
957-0150
|
AR
|
Washer - 3/8
|
|
17
|
952-1720
|
2
|
Capscrew - 3/8-16x1-5/8
|
|
18
|
952-1664
|
2
|
Capscrew - 3/8-16x3/4
|
|
19
|
715-0416
|
1
|
Timing Wheel Pointer
|
|
20
|
952-1876
|
3
|
Screw - 3/8-24x1-1/2
|
|
21
|
590-4027
|
1
|
Timing Wheel
|
|
22
|
957-0038
|
AR
|
Lockwasher - 1/2
|
|
23
|
957-0158
|
AR
|
Washer - 1/2
|
|
24
|
705-6741
|
AR
|
Shim - .018 Thick
|
|
25
|
952-2336
|
AR
|
Capscrew - 1/2-13x1-1/2
|
|
26
|
705-5392
|
2
|
Sprocket - #60-24T
|
|
27
|
958-0139
|
2
|
Key - 5/16 Sq. x 1-3/4
|
|
28
|
705-5290
|
1
|
Chain Tightener (See Separate Listing Section 63)
|
|
29
|
552-1785
|
1
|
Roller Chain - #50x58P
|

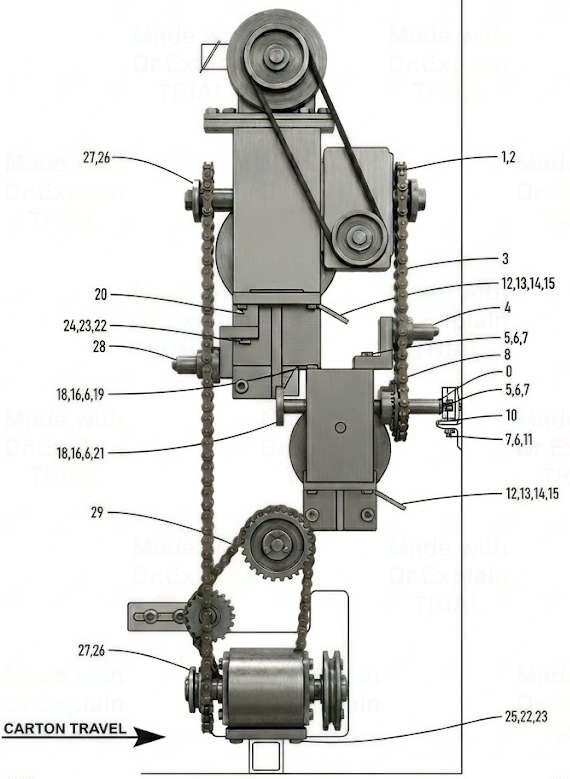

Main Drive
63-1-1.1
