715-0392
1166
|
No.
|
Part No.
|
Qty.
|
Description
|
|
1
|
—
|
1
|
Motor (See Separate Listing Section 78)
|
|
2
|
552-0734
|
1
|
Timing Belt
|
|
3
|
552-0550
|
2
|
Pulley- 30 Tooth
|
|
4
|
552-0371
|
1
|
Bushing
|
|
5
|
552-0365
|
1
|
Bushing
|
|
6
|
958-0152
|
3
|
Key- 1/4 Sq. x 2
|
|
7
|
715-0553
|
1
|
Motor Mounting Bracket
|
|
8
|
590-4028
|
1
|
Mandrel Indexer
|
|
9
|
552-2387
|
1
|
Mandrel Centric Clutch
|
|
10
|
705-6208
|
1
|
Mandrel Clutch Driven Hub
|
|
11
|
958-0168
|
1
|
Key- 3/8 Sq. x 2-1/2
|
|
12
|
959-0222
|
1
|
Clamp Collar
|
|
13
|
957-0228
|
4
|
Hardened Washer- 25/64 I.D.
|
|
14
|
957-0030
|
AR
|
Lockwasher- 3/8
|
|
15
|
952-1704
|
8
|
Capscrew- 3/8-16x1-3/8
|
|
16
|
952-1672
|
4
|
Capscrew- 3/8-16x7/8
|
|
17
|
952-1712
|
AR
|
Capscrew- 3/8-16x1-1/2
|
|
18
|
957-0150
|
AR
|
Washer- 3/8
|
|
19
|
552-2304
|
6
|
Capscrew- 1/2-13x1
|
|
20
|
957-0038
|
AR
|
Lockwasher- 1/2
|
|
21
|
957-0158
|
AR
|
Washer- 1/2
|
|
22
|
705-6741
|
AR
|
Shim- .018 Thick
|
|
23
|
705-6742
|
AR
|
Shim- .036 Thick
|
|
24
|
705-6743
|
AR
|
Shim- .075 Thick
|
|
25
|
705-6744
|
AR
|
Shim- .005 Thick
|
|
26
|
705-5188
|
4
|
Dowel Pin
|
|
27
|
715-0389
|
1
|
Indexer Bracket
|
|
28
|
715-0390
|
1
|
Indexer Bracket
|
|
29
|
705-6211
|
1
|
Conveyor Clutch Driven Hub
|
|
30
|
552-2386
|
1
|
Conveyor Centric Clutch
|
|
31
|
959-0221
|
1
|
Clamp Collar
|
|
32
|
957-0252
|
4
|
Hardened Washer- 11/32 I.D.
|
|
33
|
952-1360
|
4
|
Capscrew- 5/16-18x1
|
|
34
|
957-0026
|
4
|
Lockwasher- 5/16
|
|
35
|
952-2352
|
4
|
Capscrew- 1/2-13x2
|
|
36
|
952-2336
|
AR
|
Capscrew- 1/2-13x1-1/2
|
|
37
|
705-5446
|
1
|
Sprocket- #50, 24T
|
|
38
|
958-0117
|
2
|
Key- 1/4 Sq. x 1-3/8
|
|
39
|
559-0624
|
1
|
Diamond Flanged Bearing
|
|
40
|
705-2218
|
1
|
Chain Tightener Slide Block
|
|
41
|
590-1672
|
1
|
Clamping Collar
|
|
42
|
552-0876
|
1
|
Idler Sprocket- 17T
|
|
43
|
559-0655
|
2
|
Washer
|
|
44
|
590-2693
|
1
|
Idler Shaft
|
|
45
|
552-2390
|
1
|
Roller Chain- #60x128 Pitches
|
|
46
|
958-0154
|
2
|
Key- 3/8 Sq. x 2
|
|
47
|
705-5250
|
1
|
Right Angle Gear Box
|
|
48
|
590-4026
|
1
|
Conveyor Indexer
|
|
49
|
705-6799
|
1
|
Sprocket- #50, 24T
|
|
50
|
705-6798
|
2
|
Adjusting Hub
|
|
51
|
958-0139
|
3
|
Key- 5/16 Sq. x 1-3/4
|
|
52
|
952-1688
|
14
|
Capscrew- 3/8-16x1-1/8
|
|
53
|
705-6667
|
8
|
Heavy Washer
|
|
54
|
705-6797
|
1
|
Sprocket- #60-2, 22T
|
|
55
|
954-1366
|
4
|
Setscrew- 5/16-18x5/8
|
|
56
|
715-0552
|
1
|
Motor Slide Plate
|
|
57
|
952-1664
|
4
|
Capscrew- 3/8-16x3/4
|

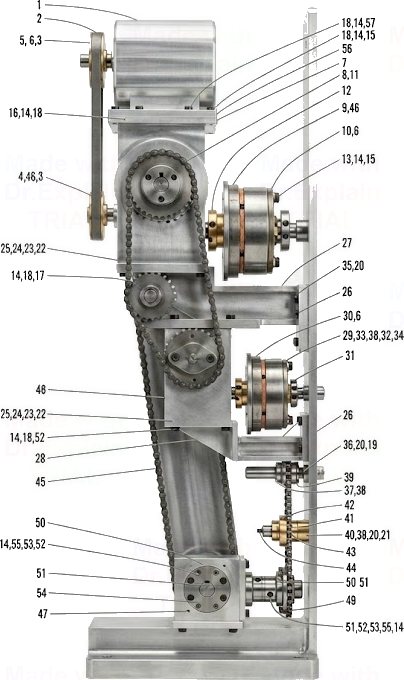

Main Drive (Sheet 1 and 2)
63-2-1.3
