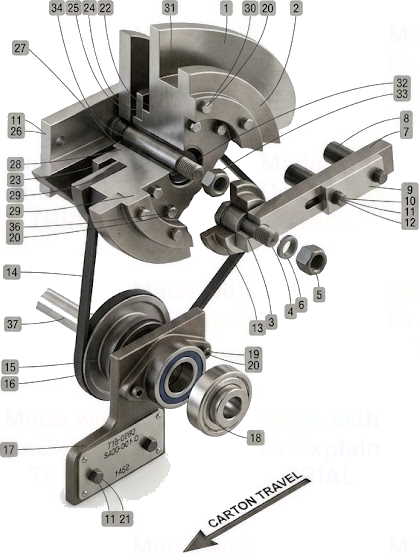

63-3-1.1 Bottom Oven & Tucker Drive Cams
715-0392
5420-001-D
1452
1161
|
No.
|
Part No.
|
Qty.
|
Description
|
|
1
|
715-0236
|
1
|
Bottom Oven Cam
|
|
2
|
705-5580
|
1
|
Bottom Breaker Cam
|
|
3
|
559-0655
|
2
|
Washer
|
|
4
|
705-6390
|
1
|
Idler Shaft
|
|
5
|
951-0114
|
1
|
Jam Nut - 3/4x16
|
|
6
|
957-0050
|
1
|
Lockwasher - 3/4
|
|
7
|
705-5369
|
1
|
Block
|
|
8
|
705-5370
|
2
|
Spacer
|
|
9
|
705-6389
|
1
|
Plate
|
|
10
|
952-2392
|
2
|
Capscrew - 1/2-13x3-1/4
|
|
11
|
957-0038
|
8
|
Lockwasher - 1/2
|
|
12
|
957-0156
|
2
|
Washer - 1/2
|
|
13
|
552-0876
|
1
|
Idler Sprocket
|
|
14
|
552-1788
|
1
|
Roller Chain - #50x64 Pitches
|
|
15
|
705-5446
|
1
|
Sprocket
|
|
16
|
958-0104
|
1
|
Key - 1/4-1/4x1-1/8
|
|
17
|
705-5439
|
1
|
Bearing Bracket
|
|
18
|
559-0624
|
1
|
Flange Bearing
|
|
19
|
952-1692
|
2
|
Capscrew - 3/8-16x1-1/8
|
|
20
|
957-0030
|
14
|
Lockwasher - 3/8
|
|
21
|
952-2328
|
2
|
Capscrew - 1/2-13x1-3/8
|
|
22
|
705-5576
|
1
|
Clamp Ring
|
|
23
|
705-5324
|
1
|
Sprocket
|
|
24
|
952-1352
|
4
|
Capscrew - 5/16-18x7/8
|
|
25
|
957-0026
|
4
|
Lockwasher - 5/16
|
|
26
|
952-2336
|
4
|
Capscrew - 1/2-13x1-1/2
|
|
27
|
705-6421
|
1
|
Washer
|
|
28
|
705-6422
|
2
|
Bearing
|
|
29
|
705-6456
|
1
|
Spacer
|
|
30
|
952-1712
|
6
|
Capscrew - 3/8-16x1-1/2
|
|
31
|
705-5366
|
1
|
Hub
|
|
32
|
705-6420
|
1
|
Retainer
|
|
33
|
951-0363
|
1
|
Jam Nut - 3/4-16 L.H.
|
|
34
|
705-6406
|
1
|
Stub Shaft
|
|
35
|
952-1736
|
6
|
Capscrew - 3/8-16x2
|
|
36
|
705-5577
|
1
|
Clamp Ring
|
|
37
|
715-0265
|
1
|
Shaft
|
Bottom Oven & Tucker Drive Cams
63-3-1.1
